| Model Name |
DR750X-3CH Plus |
| Channel |
3CH |
| Highlights |
Full HD + Full HD + HD (Front + Rear + Interior), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module |
| Product Dimensions |
Front: Black / W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105 g (3.70 oz)
Rear: Black / W 67.4 mm x H 25 mm / 25 g (0.88 oz)
Interior: Black / W 67.4 mm x H 25 mm / 25 g (0.88 oz) |

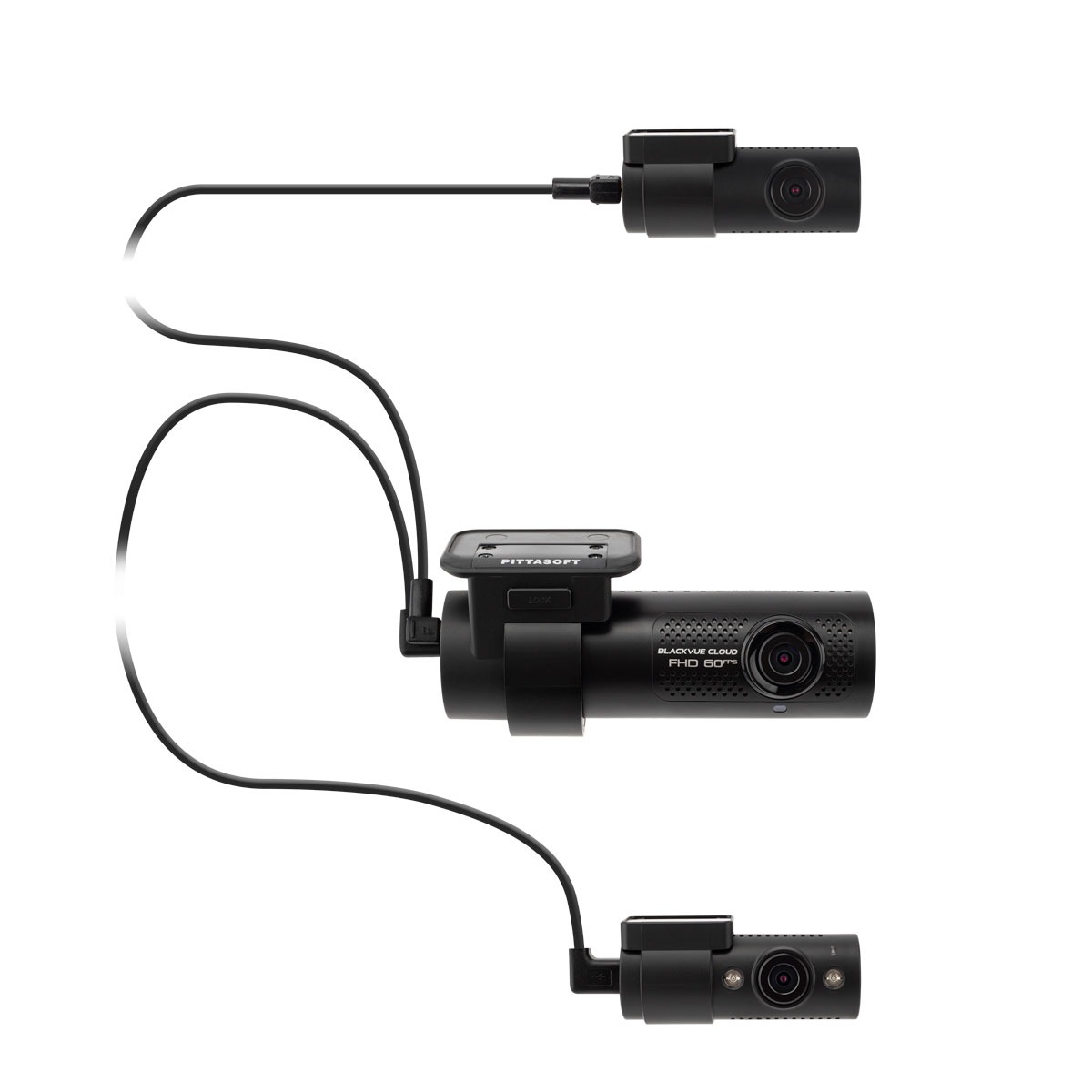

| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 256GB |
| Recording Modes |
– Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events) |
| Parking Mode |
YES (with 3-wire hardwiring cable – included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Interior: Sony CMOS Sensor (Approx.1.27 M Pixel)
|
| Viewing Angle |
Front : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear : Diagonal 139°, Horizontal 116°, Vertical 61°
Interior : Diagonal 119°, Horizontal 98°, Vertical 55° |
| Resolution Frame Rate |
Front / Rear / Interior
Full HD (1920×1080) @ 60 fps – Full HD @ 30 fps (1920×1080) – HD (1280×720) @ 30 fps
*Frame rate may vary during Wi-Fi streaming. |
| Video Codec |
H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Front / Rear / Interior
Highest (Extreme): 16 + 10 + 8 Mbps
Highest: 12 + 10 + 8 Mbps
High: 10 + 8 + 6 Mbps
Normal: 8 + 6 + 4 Mbps |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 51) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11 b.g.n) |
| Cloud Compatible |
YES |
| GPS |
Built-in (Dual Band : GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| LED Indicators |
Front: Recording LED, GPS LED, B/W/L LED, Front Security LED
Rear: Rear Security LED
Interior: Interior Security LED |
| Rear Camera IR Illumination |
Interior USB: 940 nm (4 Infrared (IR) LEDs) |
| Button |
Button: Wi-Fi ON/OFF (Press)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable) |
| Operation Temperature |
‘-20°C ~ 75°C / -4°F ~ 167°F |
| Storage Temperature |
‘-20°C ~ 80°C / -4°F ~ 176°F |
| High Temp Cut Off |
80°C (176°F) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour |
Normal Mode (Wi-Fi On / GPS On / 3CH) : 540mA / hour
Normal Mode (Wi-Fi Off / GPS On / 3CH) : 510mA / hour
Parking Mode (Wi-Fi On / GPS Off / 3CH) : 495mA / hour
Parking Mode (Wi-Fi Off / GPS Off / 3CH) : 465mA / hour
* Actual power consumption may vary depending on use conditions and environment.
* Approximately, 50mA may increase in electric current when IR LED is turned ON. |
| Certifications |
Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM
Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE
Interior: FCC, IC, CE, UKCA, RoHS, WEEE
USB Hub: FCC, IC, CE, UKCA, RoHS, WEEE |
| Software |
BlackVue Viewer
* Windows 7 or higher and Mac OS X Sierra (10.12) or higher |
| Application |
BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher) |
| Others |
Adaptive Format-Free File Management System |
| Bluetooth |
Built-in (V2.1+EDR/4.2) |
| LTE |
External (optional) |
